Horizontal Thin Film Evaporators

Process solution for special requirements

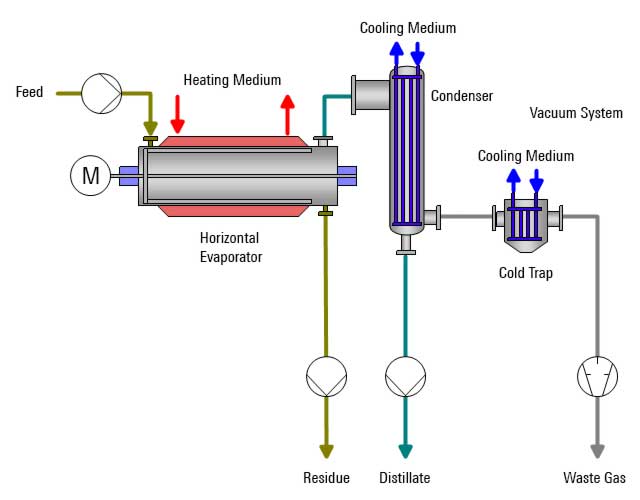

The working principle of horizontal thin film evaporators is similar to vertical thin film evaporators.
However the horizontal design allows highest flexibility in terms of residence time, evaporation rates and turn-down ratios.
The recovery of large solvent amounts from viscous products, processing of inhomoguenous products or performing
continous reactions are applications for this technology.
For pharmaceutical or food applications horizonal thin film evaporation plants can be desinged for full GMP and in hygienic design.

Performance features

  • Capacity: 0,1 kg/h up to several t/h
  • Operating pressure:
    full vacuum to overpressure
  • Evaporation ratio: max. 99.5%
  • Turn down ratio: not limited
  • Visosity: max. 75.000 mPas
    at operating temperature
  • Residence time: adjustable
  • Continous reactions: possible

Typical Applications

Processing of thermal sensitive, viscous or foaming products such as

  • Lecithin drying
  • Concentration of natural extracts
  • Peptide solutions
  • Solvent recovery from polymer side streams
  • Active pharmaceutical ingredients
  • Acrylic polymers



    Read more

    Design features

    • Installation: less height required
    • Available scales: Laboratory,
      Pilot and Industrial
    • Material of construction: glass, stainless steel, special alloys
    • GMP and hygienic version:
      free overhung rotor design with signe rotary transmission
    • Shell and rotor: straight or tapered



    Are you interested in VTA Horizontal Thin Film evaporators?

    Testing at VTA test center?

    Get in touch with us!



    VTA − plant design at its best

    VTA delivers package units in laboratory, pilot and industrial scale. Package units are skid mounted, pre-assembled systems for wiped film
    and short path distillation, rectification and thin film drying.
    All core components, like evaporators, condensers, vessels and piping, are manufactured in modern manufacturing facilities by highly qualified
    workers either by VTA or within the STREICHER group.
    All engineering services are performed entirely inhouse at VTA. By minimizing the interfaces, a smooth project execution is ensured.
